Customer Count Sheets



Customer count sheets are designed for salesmen to go into a bodyshop and count the shop's inventory in order to establish their current levels and what the shop needs to order.

Associated Permissions

CustomerCountSheet_AddAll - Allows the user to create a customer count sheet out of the customer's inventory
CustomerCountSheet_AddBlank - Allows the user to create an empty customer count sheet
CustomerCountSheet_AddUsage - Allows the user to see the usage of an item
CustomerCountSheet_CreateOrder - Allows the user to create a Work Order out of the customer count sheet
CustomerCountSheet_Delete - Allows the user to delete the customer count sheet
CustomerCountSheet_ItemAdd - Allows the user to add items to the customer count sheet
CustomerCountSheet_ItemDelete - Allows the user to delete items on the customer count sheet
CustomerCountSheet_ItemEdit - Allows the user to edit the counted quantity of items on the customer count sheet
CustomerCountSheet_ItemEditStock - Allows the user to edit the item's stock levels
CustomerCountSheet_List - Allows the user to see customer count sheets
CustomerCountSheet_Print - Allows the user to print the customer count sheet
CustomerCountSheet_View - Allows the user access to the customer count sheet screen

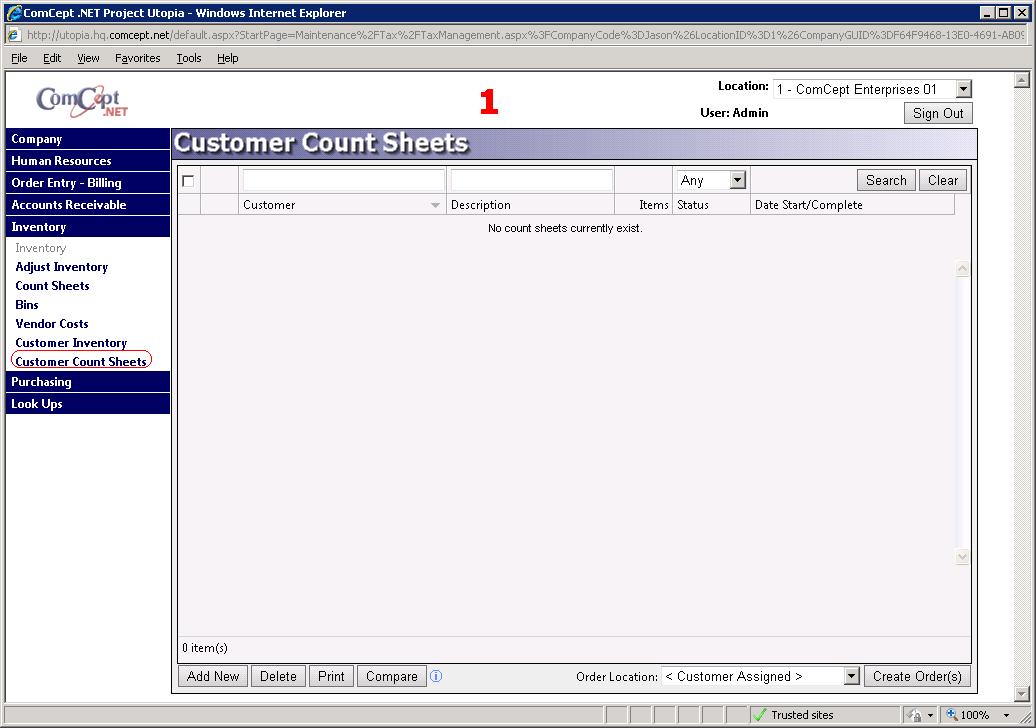

Navigate to the Customer Count Sheet Screen



Customer count sheet screen can be selected in the CDN .Net Left Nav in the Inventory section.




Create a Customer Count Sheet

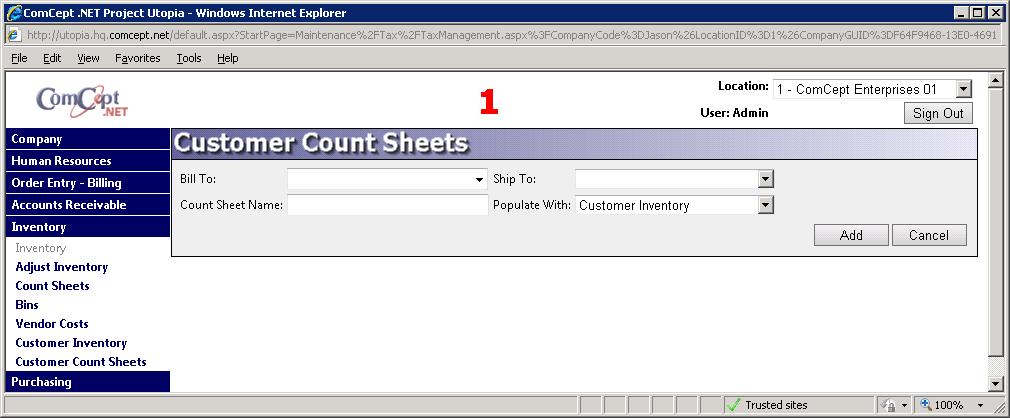

1 Select the Add New button. The page below will be displayed.

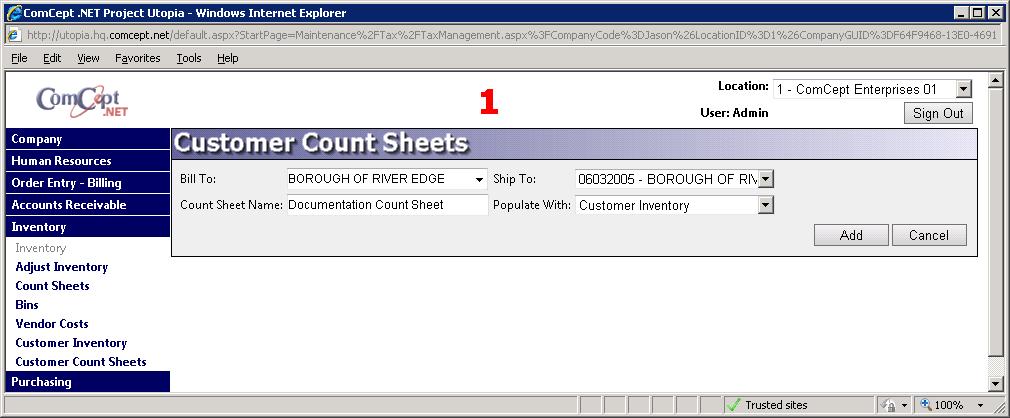

2 populate the Bill To and Ship To fields with the appropriate customer
3 Type a name into the Count Sheet Name field.
4 Select how the count sheet should be populated with the Populate With dropdown. There are only two options, customer inventory and blank. If the user selects blank, a customer count sheet will be created with no items.






5 Select the Add button. A new customer count sheet will be created.




Edit a Customer Count Sheet



Edit Quantities



This editing process will discuss how to change the counted, stock and Order quantities of an item on the customer count sheet.

Counted Quantity

Type the counted quantity of the item into the counted quantity field Fractional quantities are allowed.

Stock level

This field indicates the appropriate stock level the customer should have for each item.

Order Quantity

This value sets the quantity for the item on the subsequent order. The system will automatically generate the order quantity based on the counted quantity and stock level. The user has the ability to override the system generated value for any item.

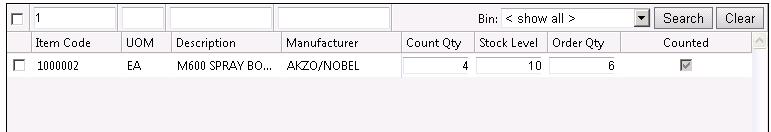

Example: Item 1000002 has a stock level of 10 and 4 are counted in the customers shop. Once the save button is selected the system will automatically type 6 into the Order Quantity field and mark the item as counted.




Add new Items



This process is used to add new items to the customer count sheet. There are two ways to enter new items, scanning the item barcode or typing in the part number.

Note: Scanning the barcode option only works for items that have valid UPCs that match items in the Master Inventory.

Scanning the Barcode

1 Select the Scan mode checkbox.

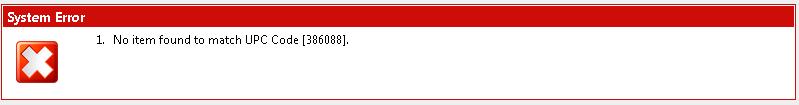

2 Scan the item's barcode. If the UPC is found in the systme, the item will automatically add the item to the customer count sheet. If the UPC is invalid an error will be displayed.






Manually Adding Items

1 Type the part number into the Item Code smart dropdown. As the user types the number the system will search for the item. Once the item in displayed in the dropdown, the user will need to select the item.
2 OPTIONAL Type the quantity that is being counted into the Counted Qty field. This will automatically add the value into the Counted Quantity field for the item when it is added to the item grid.
3 OPTIONAL Select the Counted checkbox. This indicates to the system that the item has been fully counted.
4 Select the Add buttton.

Before the Add button is selected.

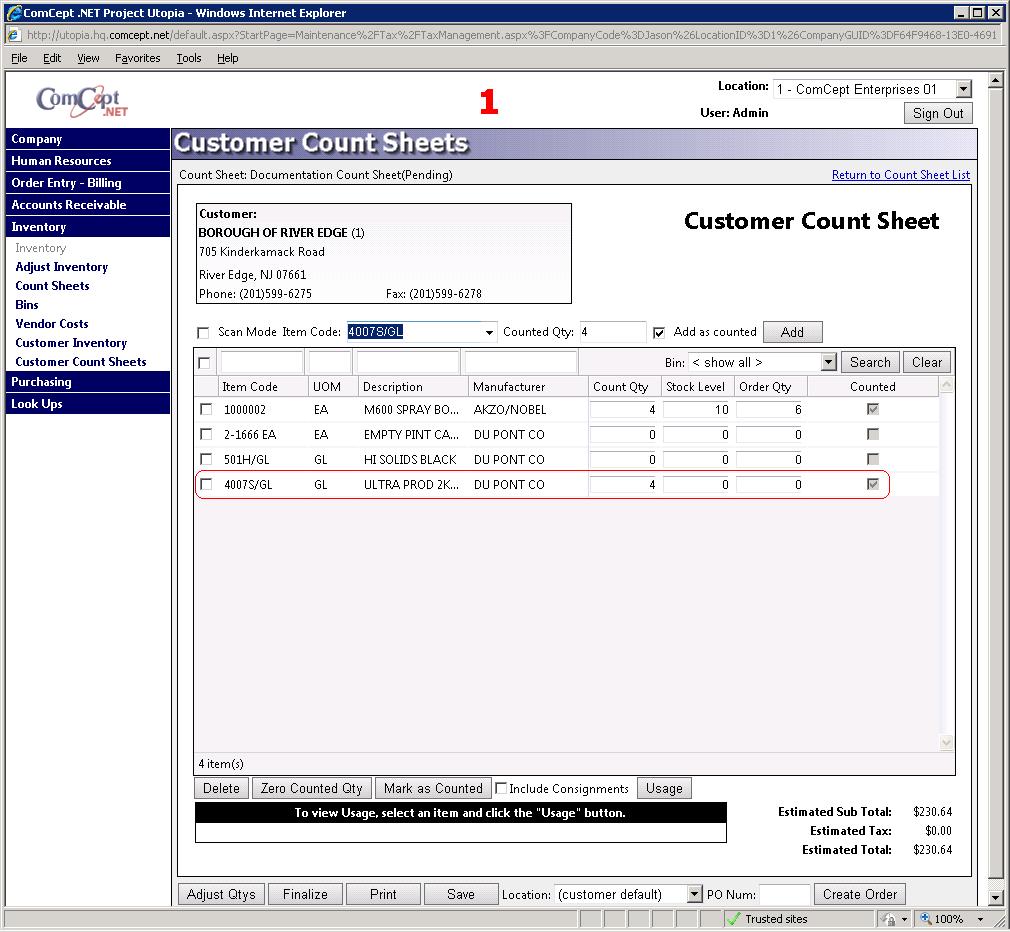

After it is selected. Image



Search for Items



This option is used when a user needs to find an item on a customer count sheet. At the top of each column there is a search field. A user can use one or many of these fields inorder to narrow the search results.




Delete an Item



This process is used to delete items from the customer count sheet. If the count sheet was generated from the customer's inventory, it will not delete the item from their inventory.

1 Select the checkbox next to the desired item(s). NOTE: The checkbox at the top of the item grid is used to select or deselect all of the items in the grid.
2 Select the Delete button.



Zero Counted Quantities

The zero counted quantities process is used to remove the counted quantities from all or specific items.

1 Select the checkbox next to the desired item(s). NOTE: The checkbox at the top of the item grid is used to select or deselect all of the items in the grid.
2 Select the Zero Counted Quantities button.



Mark as Counted



This process is designed to tell the system that all or specific items should be marked as counted. NOTE: As the user counts items the system will automatically indicate that the items have been counted. This should only be used if the user wants to skip typing 0 into the Count Qty fields.

1 Select the checkbox next to the desired item(s). NOTE: The checkbox at the top of the item grid is used to select or deselect all of the items in the grid. 2 Select the Mark as Counted button.

Display Usage



This option will give the user a glance at a specific item's usage without leaving the customer count sheet screen.

1 Select the checkbox next to a single item. Usage can only be displayed for one item at a time.
2 OPTIONAL Select the Include Consignments checkbox.
3 Select the Usage button.








Processing of a Customer Count Sheet



Adjust Quantities



This option affects the order quantities of all the items on the customer count sheet. It it used to adjust the order quantities from 1% to 200% of their current values. If more adjustment is needed the process can be repeated.

NOTE: the original values are not saved. If the user is unhappy with the results, they will have to readjust the values or manually alter them. for example: if the original adjustment was 200%, the user can readjust it at 50% to get to the original values.

1 Select the Adjust Qtys button.
2 Indicate the adjustment value by using the - and + buttons or type the value into the percentage field.
3 Select the OK button.








The Reset button will set all of the values back to the system indicated values (Stock level - counted quantity), but will not set any custom order quantity that was on the customer count sheet prior to adjusting the quantity.

The Cancel button will close the adjust quantity window.



Finalize



This option will complete the customer count sheet and will make it uneditable.

Print



This action prints the customer count sheet. This option can be completed in the customer count sheet edit screen or the list screen. This will not complete the count sheet.

Compare two Customer Count Sheets



This action is used to compare key statistics of two customer count sheets. This can only be done from the Customer Count Sheets List screen.

1 Select the checkbox next to the two customer count sheets that need to be compared.
2 Select the Print button.



Save



This action saves all of the changes made since the customer count sheet was opened or last saved. The unsaved changes will appear pink on the screen.

Create Order



This action creates an order out of all the counted quantities for all of the items on the customer count sheet. This can be done on the list or edit screen, but the edit screen allows the user to enter more details for the order.

1 Complete the customer count sheet and select the Save button.
2 OPTIONAL Select the location the order should be applied to by selecting it in the Location dropdown. Customer default is the default value.
3 OPTIONAL Type a PO number into the PO Number field.
4 Select the Create Order button.






All of the order quantities will create a Work Order. Below is a link on how to process the Work Order.

WO Processing Help Documentation

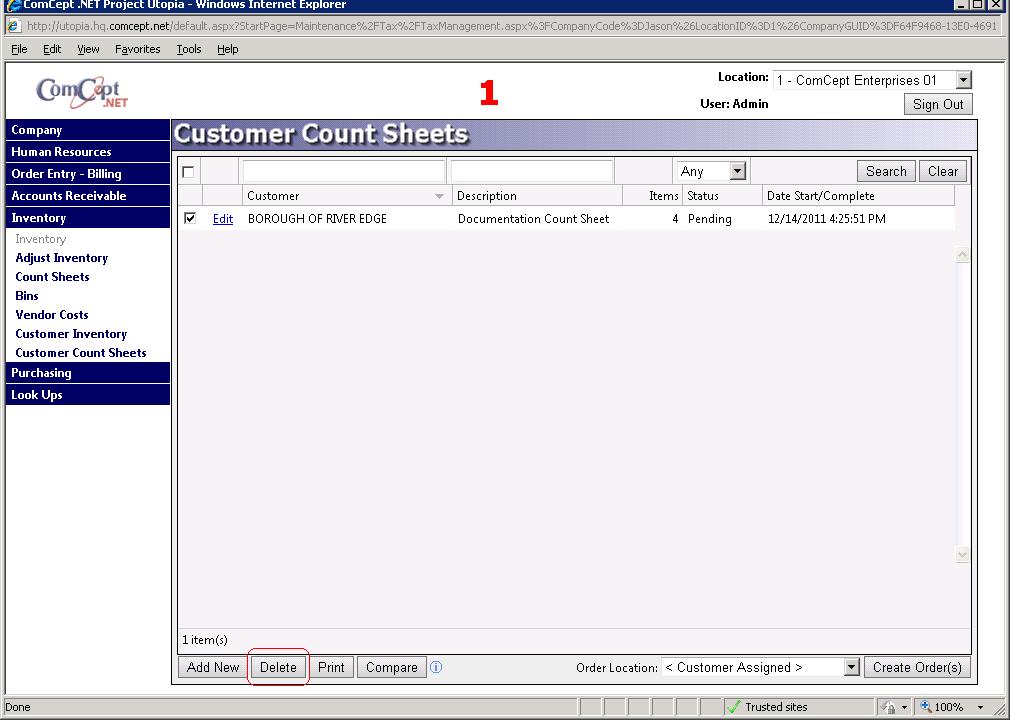

Delete a Customer Count Sheet



Deleting a customer count sheet can be preformed from the Customer Count Sheet List screen. This process removes the customer count sheet from the system.

1 Select the checkbox next to the customer count sheet that needs to be deleted. NOTE: The checkbox at the top of the grid is used to select or deselect all of the customer count sheets in the grid.
2 Select the Delete button.
