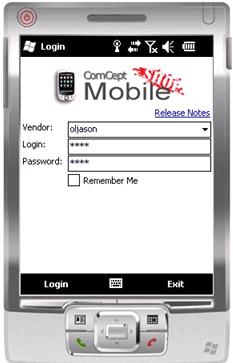

Mobile Shop - Login

Once you have tapped Add, the Mobile Shop application will verify the information you have entered before allowing you to login.  Once your account has been verified and a vendor database created on the device you will be ready to login to the Mobile Shop application.  If you wish to add another account, the drop down in the Vendor field will let you Add a new account to the Mobile Shop application.











Otherwise simply tap Login to begin using the Mobile Shop application.



Mobile Shop – Feature (Main) Menu

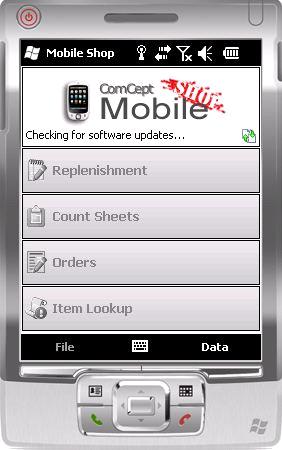

Upon completion of the login process you will arrive at the Feature (Main) Menu for the Mobile Shop Application. During the first initial seconds upon loading the screen, the software will check for any new software updates.

The software displays in the text window when it is syncing data, or checking for software updates.















































































Also the Data Sync Indicator in the right hand corner will also show when the application is in the process of syncing.

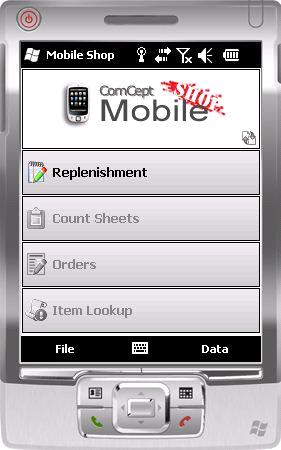

From the Feature (Main) Menu in Mobile Shop you can access the different features available within the application.

At this time only Replenishment is currently active.

The Count Sheets, Orders, and Item Lookup features are in development at this time.

At the bottom of the Feature (Main) Menu screen is the Feature Menu Control Bar Items, File and Data.

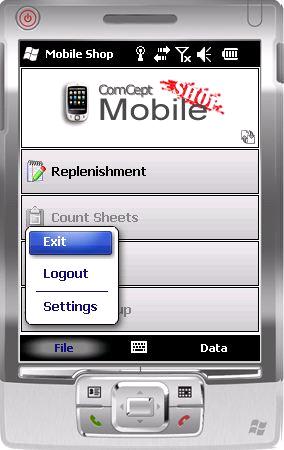

Feature (Main Menu) - File Menu Item



















The File Menu Item when tapped will bring up the File Menu. The 3 options here are: Exit, Logout, and Settings.

Exit will exit the application.

Logout will log you out and bring you back to the Login screen.

Settings will open the Settings Menu where you can make adjustments to the application.



























Feature (Main) Menu - File Menu - Settings Menu

























The Settings Menu has 3 separate menu tabs these are: Misc, Replenishment, and About.

At the bottom of the Settings Menu are the 2 Settings Menu Control Bar Items, Done and Cancel.

Done when tapped will save any adjustments you have made and return you to the Mobile Shop Feature (Main) Menu.

Cancel when tapped will discard any changes made and return you to the Mobile Shop Feature (Main) Menu.

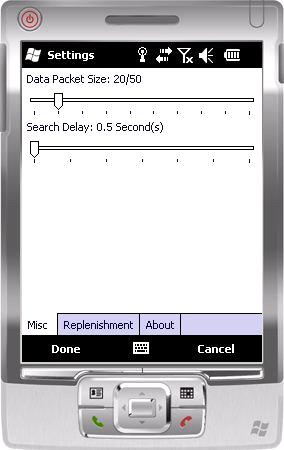

Feature (Main) Menu - File Menu - Settings Menu – Misc Tab



























The Misc Tab is where you can adjust the Data Packet Size and the Search Delay values.

The Data Packet Size by default is 20/50. However it has a min/max range of 10/25 to 100/250. This option allows you to set the upload/download packet sizes for optimum performance.

The Search Delay time by default is 0.5 seconds. However it has a min/max range of 0.5 to 2.0 seconds. This option allows you to set the time delay that will occur from when you enter the first character in a manual item search to when the application will begin to search based on the last character entered

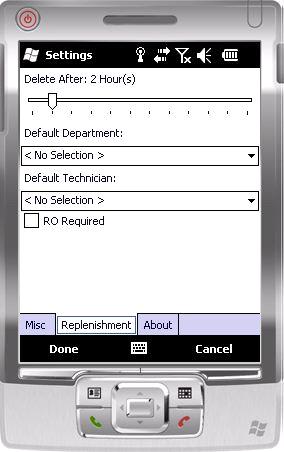

Feature (Main) Menu - File Menu Item - Settings Menu – Replenishment Tab



























The Replenishment tab is where you can adjust the Delete After, Default Department and Default Technician values. RO Required is in development.

Delete After is where you can set the time period in which old data that has already been uploaded is deleted. By default it is set to two (2) hours, but has a min/max of from one (1) to twelve (12) hours.

Default Department is where you can specify a particular department. The default is No Selection. Default Technician is where you can specify a particular technician. The default is No Selection.

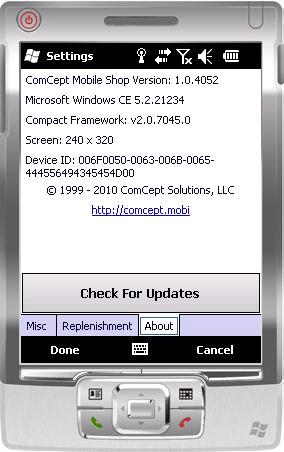

Feature (Main) Menu - File Menu - Settings Menu – About Tab





























The About tab displays current information about Mobile Shop and the device.

From here you can also manually check for software updates by tapping the Check For Updates Item.























Continue with the documentation
